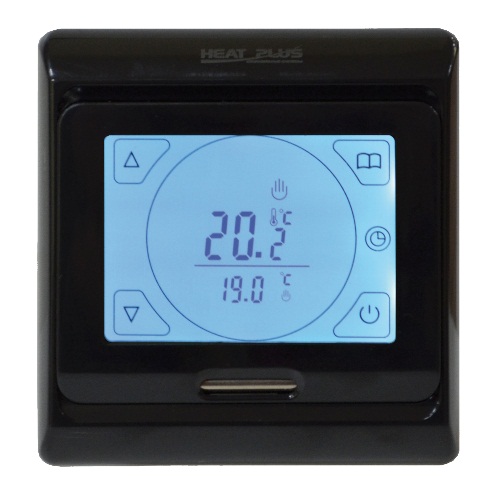

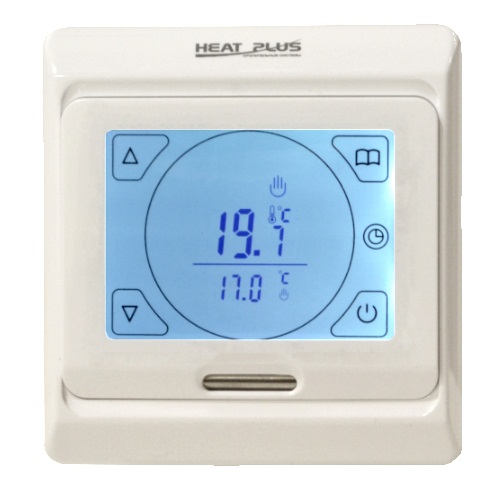

\n\t\t\tMax. power, kWt<\/td>\n\t\t\t | 3,2<\/td>\n\t<\/tr>\n<\/table>\n<\/div><\/div><\/div><\/div><\/div><\/div><\/div>description<\/h3>\n\t\n\tThe digital thermostat with sensor control panel, large LCD display and programming capability M6.716 is available under TM Heat Plus. \n\n\t\tIt is designed for automatic temperature control in rooms equipped with electric floor heating systems.\n\t<\/p>\n Main features of thermostat:\n\t<\/p>\n \n- - The design of the thermostat resembles modern smartphones.\n\t<\/li>\n
- - Sensor front control panel.\n\t<\/li>\n
- - LCD-display with backlit screen, easy to read even in the dark.\n\t<\/li>\n
- - Convenient programming (5 days +2 days or 6 days + 1 day).\n\t<\/li>\n
- - One-touch control of temperature adjustment.\n\t<\/li>\n
- - Saving the settings when the thermostat is switched off.\n\t<\/li>\n
- - Easy installation.\n\t<\/li>\n\n<\/ul><\/div><\/div><\/div><\/div><\/div>
\n\t \n\t\tcharacteristics\n\t<\/h3>\n\t\n\t\tmain\n\t<\/h3>\n\n\n\t\n\t\t\tType<\/td>\n\t\t\t | Digital, programmable<\/td>\n\t<\/tr>\n\t | \n\t\t\tControl panel<\/td>\n\t\t\t | sensor<\/td>\n\t<\/tr>\n\t | \n\t\t\tInstallation<\/td>\n\t\t\t | inside<\/td>\n\t<\/tr>\n\t\t | \n\t\t\tDisplay<\/td>\n\t\t\t | LCD\n\t\t<\/td>\n\t<\/tr>\n\t | \n\t\t\tTimer<\/td>\n\t\t\t | no\n\t\t<\/td>\n\t<\/tr>\n\t\n\t | \n\t\t\tMax. Power<\/td>\n\t\t\t | 3.2\u043aW<\/td>\n\t<\/tr>\n\t | \n\t\t\tAdjustable temperature range<\/td>\n\t\t\t | factory setting: 0 \u2103 ~ + 60 \u2103. \n Manual setting: -20 \u2103 ~ +99 \u2103.\n\t\t<\/td>\n\t<\/tr>\n\t | \n\t\t\tOperating voltage<\/td>\n\t\t\t | 220V<\/td>\n\t<\/tr>\n\t | \n\t\t\tProtection from children<\/td>\n\t\t\t | yes<\/td>\n\t<\/tr>\n<\/table>\n<\/div><\/div><\/div><\/div>\n\t \n\t\n\t\t\tPermissible current<\/td>\n\t\t\t | 10\u0410.<\/td>\n\t<\/tr>\n\t | \n\t\t\tDegree of protection<\/td>\n\t\t\t | IP20<\/td>\n\t<\/tr>\n\t | \n\t\t\tPower consumption<\/td>\n\t\t\t | 2 W<\/td>\n\t<\/tr>\n\t | \n\t\t\tNumber of chains<\/td>\n\t\t\t | 1<\/td>\n\t<\/tr>\n\t | \n\t\t\tArea of the warm floor<\/td>\n\t\t\t | 10 m2<\/td>\n\t<\/tr>\n\t | \n\t\t\tBody<\/td>\n\t\t\t | fireproof plastic<\/td>\n\t<\/tr>\n\t | \n\t\t\tColor<\/td>\n\t\t\t | white, black<\/td>\n\t<\/tr>\n | \n\tOperating temperature<\/td>\n\t | from +5 to +50 \u2103<\/td>\n\t<\/tr>\n\t | \n\t\t\tDimensions<\/td>\n\t\t\t | 115\u0445115\u044545 mm<\/td>\n\t<\/tr>\n<\/table>\n<\/div><\/div><\/div><\/div>\n\t \n\t\tequipment\n\t<\/h3>\n\n\t\n\t\t\tThermostat<\/td>\n\t\t | 1 item<\/td>\n\t<\/tr>\n\t | \n\t\t\tThermal sensor NTC with cable (3m)<\/td>\n\t\t\t | 1 item<\/td>\n\t<\/tr>\n\t | \n\t\t\tBolts for fastening<\/td>\n\t\t\t | 2 items<\/td>\n\t<\/tr>\n\t | \n\t\t\tUser guide<\/td>\n\t\t\t\t | 1 item<\/td>\n\t<\/tr>\n\t | \n\t\t\tGuarantee<\/td>\n\t\t\t | 2 yeaes<\/td>\n\t<\/tr>\n<\/table>\n<\/div><\/div><\/div><\/div><\/div><\/div>\n\tInstallation of the thermostat of the warm floor\n<\/h3>\n\nThe main function of the thermostat is to maintain the temperature in the room. Temperature measurement can occur as an internal air temperature sensor, or remote temperature sensor.\nThe thermostat can regulate the room temperature by the internal sensor, while simultaneously controlling the maximum temperature of the film heating by the remote sensor. Thus, an effective control of the room temperature is achieved without the danger of overheating the floor covering.\nWhen using the thermostat in Heath Plus systems, a remote temperature sensor is used to monitor the operation of the system, which is installed under the film. Thanks to this, the heating of the infrared film and, accordingly, the floor covering is directly controlled.\n\tThe installation of the thermostat and its connection to the film and the network must be carried out by an installer in accordance with the instructions in the user's manual.\n\tThe thermostat is connected to an AC network of 50Hz 220V. When connecting, it is important to observe the order of the phase and neutral wires in order to avoid electric shock.\n\tThe remote temperature sensor is connected to the thermostat. The sensor thermal head is fixed directly to the film from below, using an insulating tape.\nIt is necessary to ensure a tight fit of the sensor to the film, to ensure the accuracy of the heating temperature adjustment.\nThe film strips are connected to the thermostat according to the scheme indicated on the rear panel of the thermostat or the user's manual.\nAfter checking all the connections and contacts of the system, it is necessary to check the operation of the thermostat by switching it on.<\/p><\/div><\/div><\/div><\/div> \n | | | |
