\n\t\n\tIt is used to remove static voltage, when using a warm film floor in wet rooms, as well as premises built with the use of metal-containing materials. E-dero is the basis of a flexible polyester, with a carbon coating applied to it. In contrast to the foil elements, it does not prevent the passage of infrared radiation.\n\t\n<\/p><\/div><\/div>

\n\t

\n\t\tcharacteristics\n\t<\/h3>\n\n\t\n\t\t\t\n\t\t\t\n\t\t\t
Thickness<\/td>\n\t\t0,15 mm<\/td>\n\t<\/tr>\n\t
Width<\/td>\n\t\t\t1,5 m<\/td>\n\t<\/tr>\n\t
Roll<\/td>\n\t\t\t50 m<\/td>\n\t<\/tr>\n\t\n<\/table>\n<\/div><\/div><\/div><\/div><\/div><\/div><\/div>
\n\t

\n\t\tcharacteristics\n\t<\/h3>\n\n\t\n\t\t\t\n\t\t\t\n\t\t\t
Thickness<\/td>\n\t\t0,15 mm<\/td>\n\t<\/tr>\n\t
Width<\/td>\n\t\t\t1,5 m<\/td>\n\t<\/tr>\n\t
Roll<\/td>\n\t\t\t50 m<\/td>\n\t<\/tr>\n\t\n<\/table>\n<\/div><\/div><\/div><\/div><\/div><\/div><\/div>

description<\/h3>\n\t

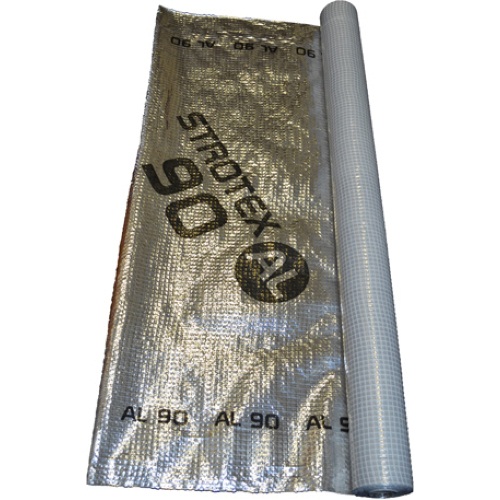

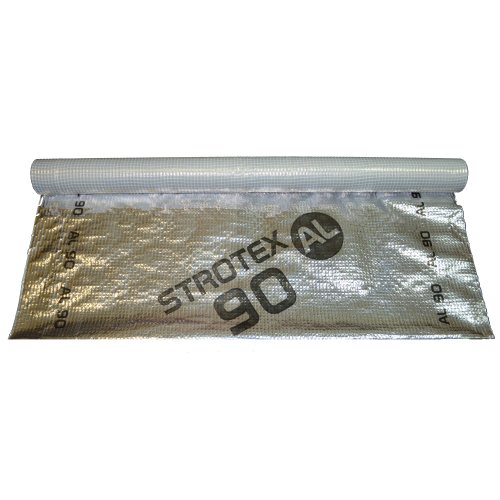

Laminated reinforced aluminum film-heat reflector with an additional protective effect - Strotex 90Al is used for thermal and waterproofing when laying infrared heated floors. Heath Plus for heavy coatings (tiles, marble, etc.).\n<\/p>\n\t

\n\tThe substrate is laid under a film for vapor and hydroprotection from evaporation from the screed, as well as to reflect the lower part of the infrared radiation of the film. Thus, the efficiency of the heating system is increased due to the reduction of heat losses to the heating of the concrete screed.\n<\/p>\n

\n\tDue to the minimum thickness of the film (0.15 mm), the floor level does not change, which makes it possible to lay the film on the finished screed under the tile without additional costs for leveling the floor. Also, when installing under the tile, adhesive compositions can be used to fix the substrate on the screed and the film on the substrate.\n<\/p>\n

\nStrotex fits under the film with a margin around the perimeter of 10-15 cm.\n<\/p><\/div><\/div><\/div><\/div><\/div>

\n\t

\n\t\tcharacteristics\n\t<\/h3>\n\t\n\n\t\n\t\n\t\t\t\n\t\t\t\n\t\t\t\n\t\t\t\n\t\t\t\n\t\t\t
Width<\/td>\n\t\t\t1,5 m<\/td>\n\t<\/tr>\n\t
Length<\/td>\n\t\t\t50 m<\/td>\n\t<\/tr>\n\t\t
Thickness<\/td>\n\t\t0,15 mm<\/td>\n\t<\/tr>\n\t\t
Roll weight<\/td>\n\t\t\t8 kg<\/td>\n\t<\/tr>\n\t\t
Temperature mode<\/td>\n\t\t\tfrom -40 to +80 \u2103<\/td>\n\t<\/tr>\n\t\t
Thermal conductivity<\/td>\n\t\t\t0,2-0,35 W\/m\u2022\u041a<\/td>\n\t<\/tr>\n<\/table>\n<\/div><\/div><\/div><\/div>
\n\t

\n\t\tcomposition\n\t<\/h3>\n

\n\tLaminated reinforced aluminum film.\n\t\n\t\n\t<\/p>\n<\/div><\/div><\/div><\/div>

\n\t

\n\t\tStacking\n\t<\/h3>\n

\n\tUnder any heavy coating for heat and waterproofing.
\n Fits over the rough floor under the infrared film.\n\t\n\t\t<\/p>\n<\/div><\/div><\/div><\/div><\/div><\/div>

<\/div>

Installation of the heat-reflecting substrate Strotex<\/h3>
